Super Wrap 650 and 950 de Luxe in Line
Fully automatic sleevewrapper

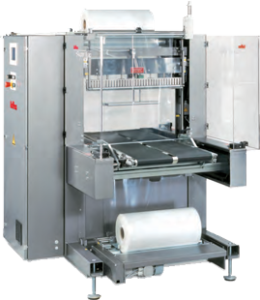

Super Wrap 650 and 950 de Luxe in-line
One machine does (almost) everything!
The Super Wrap de Luxe In-Line sleevewrapper is characterised not only by
its acceptance of a wide variety of applications but is also impressive in terms of its speed and reliability. Glass, cans, cartons and boxes, both single and multitier, with and without trays, can be automatically handled at pack rates up to 28 per minute. Available in two width versions, the Super Wrap 650 and 950, allow clearances of 650 mm and 950 mm respectively. For larger applica- tions, a third machine option is available offering a width clearance from 1300mm up to 1600 mm. In conjunction with the latest technology HV Shrink Tunnel, the Super Wrap de Luxe In-Line, is capable of achieving fully enclosed packs with side fusion seal, whilst maximising film savings.
Super Wrap is a name synonymous with a machine concept, meeting the most stringent demands with regard to flexibility and reliability. As the last link of the production chain, Kallfass products hold a particular significance. Maximum availability and trouble free operation of the packaging unit are a determining factor in the successful operation of the entire production process. The Super Wrap de Luxe In-Line is a machine you can rely on in demanding production conditions.
Facts, Data, Figures
| Technical Data | Super Wrap 650 de Luxe In-Line | Super Wrap 950 de Luxe In-Line |
|---|---|---|
| Film (flat film): | up to 3 mil. | up to 3 mil. |
| Outside diameter of film reel: | max. 16 in. | max. 16 in. |
| Width of film roll: | 26 in. top roll, 24 in. bottom roll | 39 in. top roll, 36 in. bottom roll |
| Clearance width: | 26 in. | 37 in. |
| Clearance height, adjustable: | 4 – 16 in. | 4 – 20 in. |
| In-line transport conveyor (infeed area): | length 24 in., divided in 2 parts | length 24 in., divided in 2 parts |
| Discharge conveyor (outfeed area): | length 24 in., divided in 2 parts | length 24 in., divided in 2 parts |
| Operator interface: | Touchpanel SIEMENS | Touchpanel SIEMENS |
| Seal system – seal bar with exchangeable sealing ledge in profile contour, continuous heating, temperature thermostat-controlled, with special coating, maintenance-free, completely odourless operation: | Included | Included |
| Pneumatically operated equipped with safety brake cylinders: | Included | Included |
| Film tear and film end control: | Included | Included |
| Upper and lower film pre-dispensing for extremelx light products: | Included | Included |
| Upper and lower film reel motor-driven: | Included | Included |
| Seal bar equipped with opto-electronic safety device to protect sensitive products as well as for optimum operation safety: | Included | Included |
| Compressed air operated film blowing-up device to separate film from lower seal bar: | Included | Included |
| Industrial programmable controller (PLC): | SIEMENS S7 | SIEMENS S7 |
| Infinitely adjustable speed of both transport conveyors by means of frequency transformer, incl. smooth-start: | range of adjustment approx. 10 - 30 m/min | range of adjustment approx. 10 - 30 m/min |
| Pneumatically operated holding-down device: | adjustable in height | adjustable in height |
| Product length, min. approx.: | 5 in. | 5 in. |
| Power supply 400 V: | 50 Hz, 3-phase, with protective earth conductor | 50 Hz, 3-phase, with protective earth conductor |
| Rated capacity / Rated current at 400 V: | 5.0 kVA / 7.2 amps | 5.0 kVA / 7.2 amps |
| Compressed air supply / Compressed air consumption: | 6 bar / appr. 20 l/cycle | 6 bar / appr. 25 l/cycle |
| Colour: | Kalfass Anthracite | Kalfass Anthracite |
| Options at extra cost |
|---|
| Clearance in height 20 in. |
| Free rotating counter seal bar (without wear parts such as Teflon tape or Silicone) |
| Pneumatically operated flaps in discharge area for stopping of stacked products in sealing position |
| Electrical lifting device for easier handling of heavy film reels up to a weight of 80 kg, with swivel mechanism, incl. stand-by film reel station on top |
| Stand-by film reel station for bottom reel, laterally extensible |
| Manual film splicing unit for lower and upper film reel |
| Machine on castors for mobility |
| Special color (structure lacquer, monochromatic) |
| Special voltage (for standard voltage see technical data) |
Remark: alongside the machines listed here, the Kallfass range also contains Super Wrap de Luxe models with angular infeed and different clearance widths.

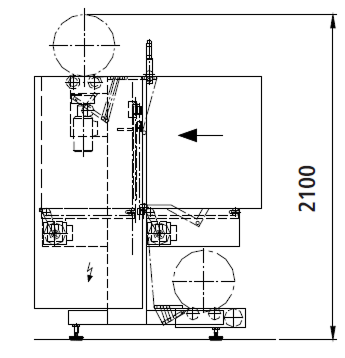

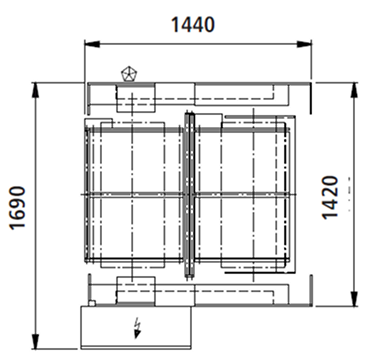

Machine dimensions (approx. in mm):
Super Wrap 650
(This drawing may show options which are not included in the basic machine version and are available against up-charge only.)
Machine dimensions (approx. in mm):
Super Wrap 950
(This drawing may show options which are not included in the basic machine version and are available against up-charge only.)
